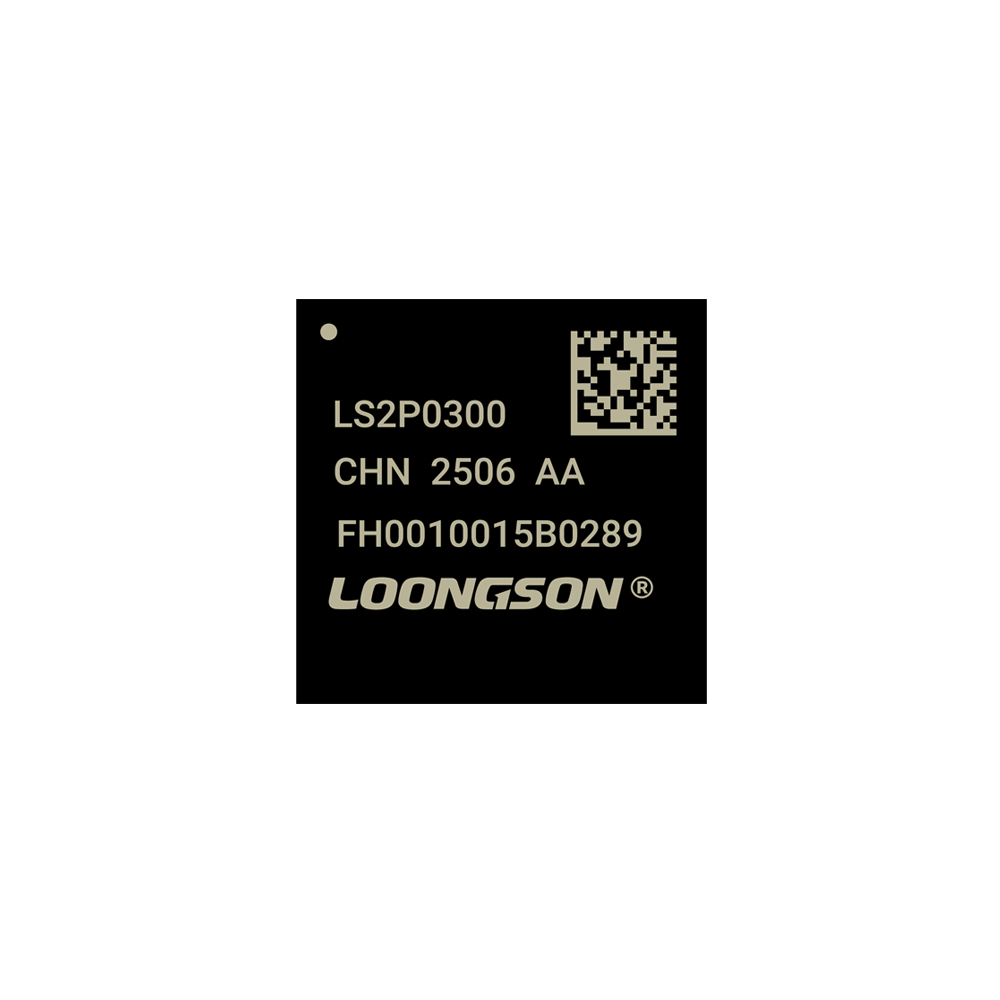

LS2P0300 Specification

Core

64-bit main cores LA264 and 32-bit small cores LA132

Frequency

main cores≥1.2GHz, small cores：400MHz

Power consumption

<1.0W(DVFS supported)

High-speed I/O

USB2.0×1, OTG×1, GMAC×1

Other interfaces

PRINTer, SCANNer, QSPI/SPI, eMMC, SDIO, ADC, I2C, UART, PWM, PMIO, GPIO, JTAG, etc.

Microarchitecture

Dual-issue out-of-order execution LA264 and single-issue LA132

L1 instruction cache

32KB for main cores and 4KB for small cores

L1 data cache

32KB for main cores and 4KB for small cores

L2 cache

Shared 256KB

Memory controller

8-bit DDR4-1600

LS2P0300 Manual

LS2P0300 Application
